Finned tubes

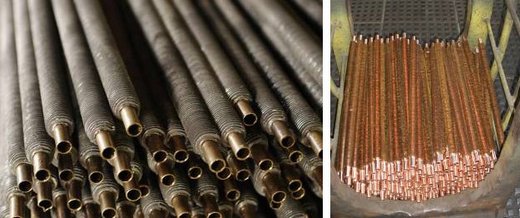

Our plant will produce according to your drawings the products of finned monometallic and bimetallic tubes with diameter 20 - 70 mm and fin pitch 1,7 - 5 mm.

Depending on climatic conditions where the heat exchange elements are used they can be designed as monometallic (copper, cupronickel and aluminum tubes), bimetallic (bearing tube of cupronickel alloys, alloy, stainless steels, external - aluminum jacket) finned tubes obtained by roll forming and plain tubes for the water coolers. They meet all modern requirements to such kind of products and are on the level of the best native and foreign examples

Specifications of the finned tubes:

Parameters	Parameters	Diameter, mm	Diameter, mm	Diameter, mm	Diameter, mm	Fig.	Fin pitth, mm	Fin thickness, mm	Fin thickness, mm	Outer surface. 1 rm F, m2
Tube type	Tube type	D out	d1	d2	d3			main	top
Finned	Monometallic	20	12,5	12	10	1	2	0,4	0,2	0,203
Finned	Monometallic	25	15	14,5	10	1	3	0,7	0,3	0,254
Finned	Monometallic	65	34	-	30	1	5	1	0,5	1,134
Finned	Bimetallic	25	13,5	12	10	2	2,5	0,4	0,2	0,28
Finned	Bimetallic	38	18	16	12	2	3	0,8	0,6	0,65
Finned	Bimetallic	39	22	19	17	1	3	0,5	1	0,61
Finned	Bimetallic	42	22	19	17	1	3	0,5	1	0,73
Finned	Bimetallic	50	22	19	17	1	3	0,5	1	1,12
Plain		10	-	-	8		-	-	-	0,031
Plain		12	-	-	10		-	-	-	0,038
